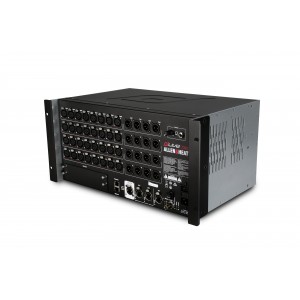

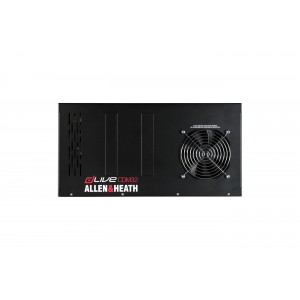

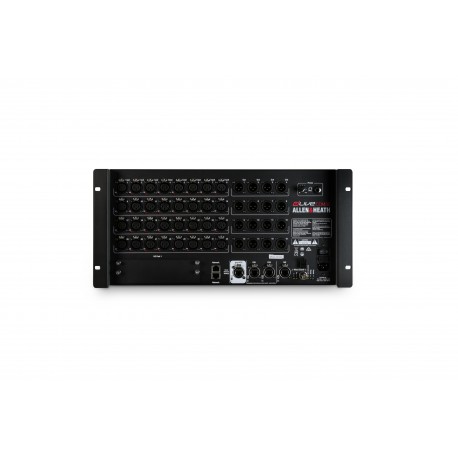

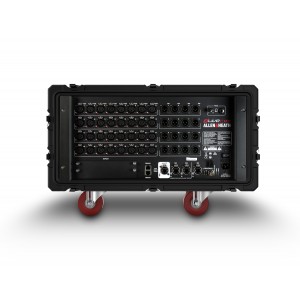

The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

Specifications:

♪ 32 mic/line inputs, 16 line outputs

♪ XCVI 160×64 FPGA core

♪ 96kHz sample rate

♪ Variable bit-depth for ultimate precision and noise performance

♪ Virtually infinite mix headroom thanks to 96bit accumulator

♪ Class leading, ultra-low latency at 0.7ms

♪ 128 Input Channels with full processing

♪ 64 Mix Outputs with full processing

♪ Configurable 64 bus architecture (group, FX, aux, matrix, mains)

♪ LR, LCR and up to 5.1 mains mode

♪ Multiple PFLs

♪ 16 RackExtra FX with dedicated stereo returns

♪ 24 DCAs

♪ AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones

♪ Built-in signal generator and RTA

♪ New preamp design for extra transparency

♪ Unique Active PAD circuit for consistent performance with any source

♪ Connection hub

♪ gigaACE gigabit link to Surface

♪ 2x DX links for I/O expansion

♪ I/O Port – 128 ch 96 kHz

♪ Dedicated ME-1 48kHz port

♪ 2x Network ports

♪ Wordclock BNC I/O

♪ Add up to 22 DX I/O expanders via DX Hub modules or DX Link cards

♪ Flush front panel with ultra quiet fan

♪ Reversible rack ears design
