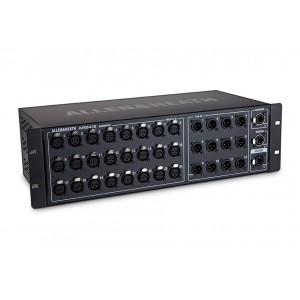

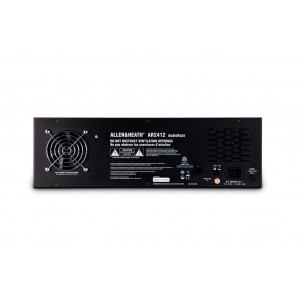

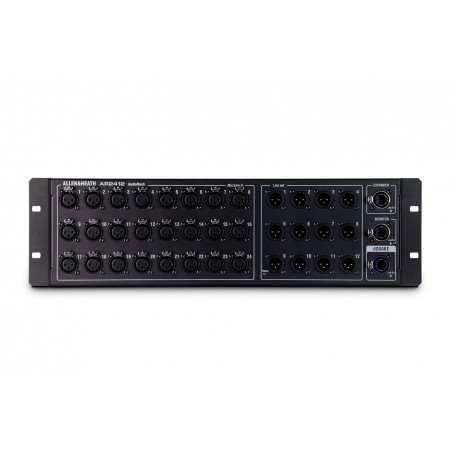

The Allen & Heath AR2412 audio rack is a digital stage box that allows Allen & Heath digital mixing consoles to be expanded with 24 remotely controllable microphone preamps and twelve line outputs (all designed as XLR connectors). Standard Cat5 network cables are used to connect the mixing console to the AR2412, and two additional network ports are also provided: An expander output for connecting a second audio rack and a monitor output for the Allen & Heath monitoring system "ME". The AR2412 requires three height units and is predestined for rack installation.

Specifications:

♪ also for Allen&Heath QU consoles

♪ 24 XLR microphone / line inputs

12 XLR line outputs

Cat 5 input outputs

♪ Aviom monitor output

♪ Format: 19" / 3 U

♪ Dimensions: 483 x 220 x 137 mm

♪ Weight: 5 kg
