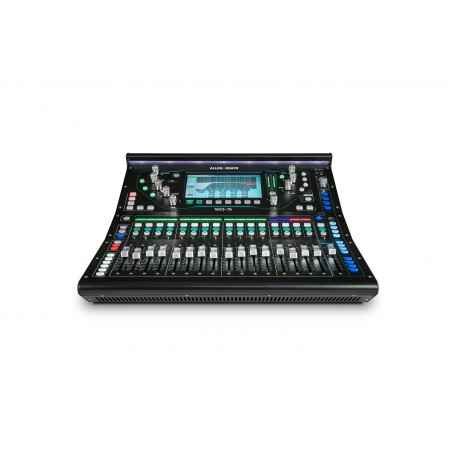

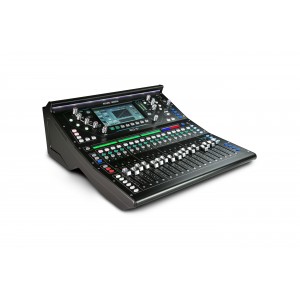

The Allen & Heath SQ-5 is the smallest SQ digital console, but its performance is no different from the SQ-6 or the flagship of the series, the SQ-7. The SQ-5 mixer manages 48 channels via 17 faders and has 16 preamps, plus it can boast 8 soft keys and 8 stereo effects units. State-of-the-art technology guarantees almost latency-free and extremely fast operation. In addition, there is a large number of connection options and interfaces, with which the application possibilities of the SQ digital consoles are multiplied.

Specifications:

♪ 19" mountable

♪ with 96 kHz FPGA processing

♪ 17 faders / 6 layers

♪ 12x stereo mixes (perfect for in-ear monitoring setups) + LR

♪ 3x stereo matrix

♪ 8x internal stereo FX with stereo returns

♪ DEEP Processing allows DEEP plug-ins to be directly integrated into channels and

   and mix busses

♪  7" touchscreen

♪  SLink connector for remote audio networking

♪  64ch I/O connector for audio networking

♪  32 x 32 USB audio interface

♪  SQ drive for direct USB dubbing

♪  AES output

♪ Chromatic channel metering

♪ integrated LED lighting per fader

♪ dedicated physical controls

♪ 8 assignable SoftKeys

♪ channel LCD displays

♪ compatible with ME-1 and ME-500, Audio Networking Card, Dante or Waves

♪ Dimensions: 440 x 514.9 x 198 mm

♪ Weight: 10.5 kg
