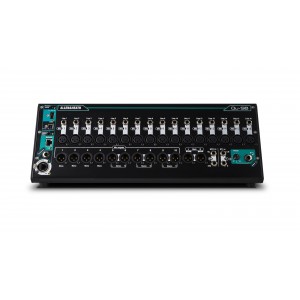

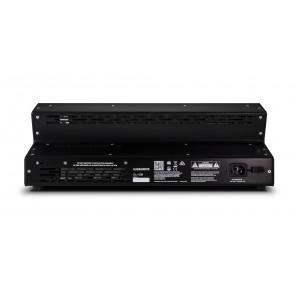

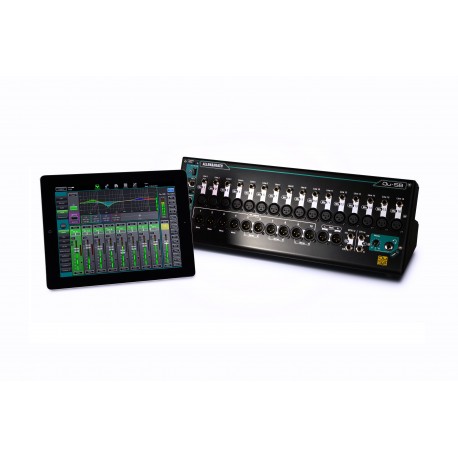

The Allen & Heath Qu-SB is a very compact digital mixer that has very few physical controls. The Qu-SB is controlled by a tablet using the Qu-Pad Remote app. The 19"-ready mixer has 16 mono and one stereo input and can also be connected to various Allen & Heath stageboxes from the AR series via the dSNAKE network port. Home studio owners and live recording fans can use the Qu-Drive USB port to capture multitrack recordings directly to a USB storage device. Perfect for a virtual soundcheck or post-processing in the studio. Allen & Heath's renowned hardware quality is also found in the Qu-SB and is accompanied by studio-quality effects units, EQs and dynamics sections.

Specifications:

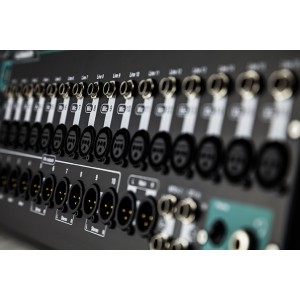

♪ 16 mono inputs (6.3 mm jack + XLR).

♪ 1 stereo input (6.3 mm jack)

♪ 12 on-board mix outputs (LR, mono mix 1-4, stereo mix 1-3)

♪ 1 stereo matrix out (6.3 mm jack)

♪ Qu-32 core inside (32 mono + 3 stereo input channels )

♪ Up to 11 monitor mixes

♪ Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay in

   all inputs

♪ Insert, 1/3 octave GEQ, 4-band PEQ, compressor and delay on all mix outputs

♪ 4 FX Engines

4 FX sends / returns

♪ 4 mute groups

♪ 4 DCA groups

♪ AnaLOGIQ TM Preamps

♪  iLive FX Library

♪ dSNAKE remote audio port expansion up to 38 inputs

♪ Automatic Mic Mixer

♪ RTA with peak band display

♪ 32 × 32 USB audio interface

♪ Qu-Drive for direct multitrack recording / playback on USB drives

♪ compatible with ME Personal Mixing System

♪ new firmware version 1.9: Pro Factory microphone presets from Audio-Technica,

   Sennheiser and Shure, DAW control for Windows, new QU Control app

♪ Footswitch connector

♪ 4 U
