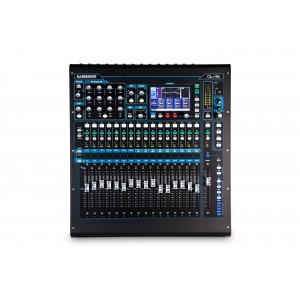

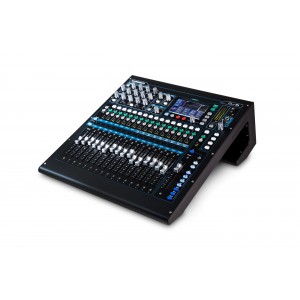

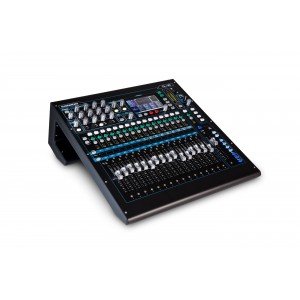

The Allen & Heath Qu-16 Chrome is a compact digital mixer that excels with its intuitive operation. The 19" mixer combines a touchscreen with plenty of physical controls such as 17 motorized faders and an EQ section. The latter is equipped with twelve encoders. The 16 mono and three stereo inputs can be expanded with the AR2412 stage box, allowing 22 channels to be docked from the stage via a network cable. Stereo inputs 1 to 3 are automatically assigned to stagebox channels 17 to 22. The Qu-Drive USB port allows multitrack recordings to be dragged directly to a USB storage device - perfect for a virtual sound check or post-processing in the studio. The high hardware quality Allen & Heath is known for is also found in the Qu-16 Chrome and is accompanied by studio-quality effects units, EQs and dynamics sections.

Specifications:

♪ 16 mono inputs via XLR or jack with AnaLOGIQTM preamps.

♪ 3 stereo inputs via TRS jack

♪ 4 stereo FX returns

♪ 16 busses

♪ 12 mix outputs: LR, mono mix 1-4, stereo mix 1-3

♪ AES digital output

♪ 4 FX engines with the iLive FX library

♪ 4 mute groups

♪ Motorized fader

♪ Trim, polarity, low cut, gate, insert, 4-band parametric EQ, compressor and delay

   delay in all inputs

♪ Insert, parametric 4-band EQ, graphic EQ, compressor and delay for Main LR

   and mono mix outputs

♪ Qu-Drive: 18-track multitrack recording/playback via USB drives

♪ Recording format: 48 kHz/ 24 bit (WAV file)

♪ 800 x 480 touchscreen

♪ Built-in signal generator

♪ USB audio streaming

♪ dSNAKE remote audio port

♪ compatible with ME Personal Mixing System

♪ Qu-Pad iPad app

♪ DAW MIDI control

♪ Dimensions: 440 x 500 x 186 mm

♪ weight: 10 kg

♪ from firmware version 1.9: Pro Factory microphone presets from Audio-Technica,

  Sennheiser and Shure, DAW control for Windows, new QU-Control App
